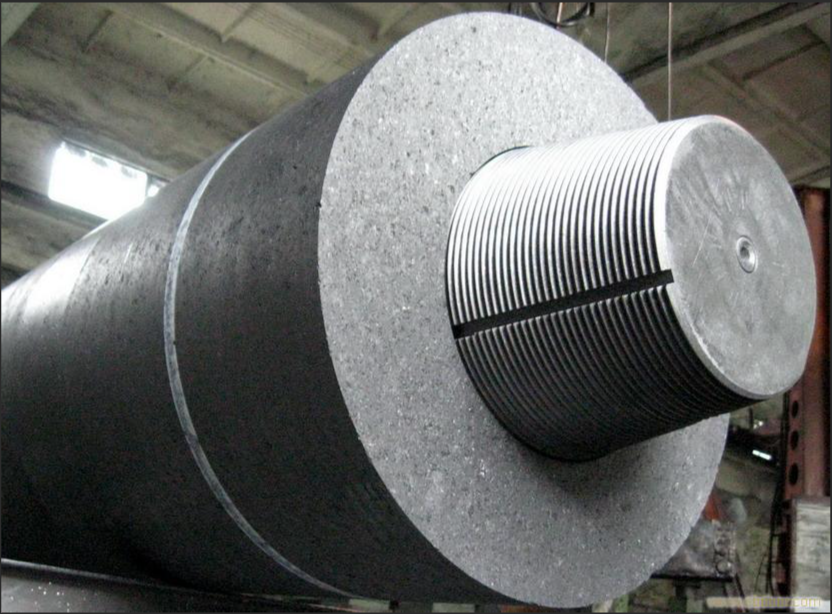

Our ultra-high power (UHP) graphite electrodes for eaf steelmaking ensure superior electrical conductivity and thermal stability, optimizing furnace efficiency and enabling high current densities for advanced metallurgical processes.
| Specification | Nominal Diameter, mm | Allowable Current Load, A | Current Density, A/cm² |
|---|---|---|---|
| Normal Power Graphite Electrode | 300 | 10000 - 13000 | 14 - 18 |
| 350 | 13500 - 18000 | 14 - 18 | |
| 400 | 18000 - 23500 | 14 - 18 | |
| 450 | 22000 - 27000 | 13 - 17 | |
| 500 | 25000 - 32000 | 13 - 16 | |
| 600 | 35000 - 41000 | 13 - 15 | |
| High Power Graphite Electrode | 300 | 13000 - 17400 | 17 - 24 |
| 350 | 17400 - 24000 | 17 - 24 | |
| 400 | 21000 - 31000 | 16 - 24 | |
| 450 | 25000 - 40000 | 15 - 24 | |
| 500 | 30000 - 48000 | 15 - 24 | |
| Ultra - High Power Graphite Electrode | 300 | 15000 - 22200 | 20 - 32 |
| 350 | 20000 - 30300 | 20 - 32 | |
| 400 | 25000 - 40400 | 19 - 32 | |
| 450 | 32000 - 45450 | 19 - 29 | |
| 500 | 38000 - 55550 | 18 - 29 | |
| 550 | 42000 - 64640 | 17 - 28 | |
| 600 | 50000 - 76760 | 17 - 27 | |
| 700 | 67000 - 101000 | 17 - 27 |
Product Description
Functional Role and Intended Users in Steel Production
The ultra-high power (UHP) graphite electrodes for EAF steelmaking are specifically engineered for steel manufacturers requiring high-capacity, reliable carbon conductors to sustain elevated electric currents during furnace melting. These electrodes serve engineering teams, procurement specialists, and operational managers focused on maximizing furnace throughput and stability. Designed to integrate seamlessly with electric arc furnaces (EAFs) operating at increased power levels, they provide critical performance support in environments demanding sustained high current densities. Their robust mechanical and thermal properties make them suitable for continuous steelmaking operations, enabling stakeholders to achieve precise control over melting cycles.
Technical Specifications and Engineering Parameters
The ultra-high power (UHP) graphite electrodes for EAF steelmaking exhibit advanced design characteristics including diameters ranging from 300 mm up to 700 mm, supporting current capacities as high as 101,000 amperes. These electrodes deliver current densities between 20 and 32 A/cm², optimized for compatibility with high-power transformers to prevent overload conditions. Manufactured using high-purity graphite with exceptional electrical conductivity and thermal stability, these electrodes provide reduced consumption rates and extended service life. Quality control ensures consistent mechanical strength to withstand thermal shock and electromagnetic stresses inherent in demanding electric arc furnace operations.
Industrial Applications and Operational Benefits
Deployed primarily in steelmaking facilities utilizing electric arc furnaces, the ultra-high power (UHP) graphite electrodes for EAF steelmaking enable rapid furnace response and higher productivity. They support metallurgical processes requiring increased energy input and operational reliability, including melting scrap metal and alloy refinement. Integration within existing furnace systems improves energy efficiency, reduces electrode consumption, and aligns with transformer specifications for optimized power delivery. This product line contributes to lowering operational costs through enhanced longevity and performance consistency, rendering it a critical asset for steel plants aiming for throughput optimization and compliance with stringent industrial standards.
Structural and Design Merits of UHP Graphite Electrodes
Our ultra-high power (UHP) graphite electrodes for EAF steelmaking feature a meticulously engineered structural composition that balances electrical performance with mechanical durability. The electrode design ensures dimensional stability under thermal cycling, supporting seamless module replacement and furnace integration. Compatibility with a range of furnace diameters and power ratings enables adaptation to diverse operational configurations. The manufacturing process incorporates stringent control measures to maintain uniform graphite density and purity, which is critical to minimizing internal defects and enhancing the electrode’s load-bearing capacity. This design logic directly improves electrode lifespan while facilitating efficient furnace system upgrades.
Performance Enhancement and User Operational Value
In terms of operational efficiency, our ultra-high power (UHP) graphite electrodes for EAF steelmaking provide superior electrical and thermal performance that directly translates to reduced downtime and energy expenditure. The high current capacity allows steelmakers to operate furnaces at optimal power levels with minimized electrode wear and consumption. Usability benefits include simplified handling due to consistent electrode quality and dimensional precision, enabling streamlined installation and replacement protocols. These performance attributes contribute to improved return on investment by reducing operational interruptions and maintenance costs, thereby supporting the rigorous demands of modern steel production environments.
Application in New Furnace Installations for Steel Manufacturing
In newly commissioned electric arc furnace (EAF) steel plants, selecting the appropriate ultra-high power (UHP) graphite electrodes for EAF steelmaking is crucial to system performance and reliability. These electrodes are integrated during furnace assembly to match the power transformer specifications and accommodate targeted current densities. Their advanced electrical conductivity and mechanical robustness ensure reliable furnace startup and continuous operation under high electric loads. By aligning electrode diameter selection with furnace design, engineering teams optimize energy consumption and maintain operational safety margins. This integration enables factories to achieve design throughput rates and comply with evolving industry performance standards.
Role in Lifecycle Management and Replacement Planning
Within existing steelmaking operations, lifecycle management of ultra-high power (UHP) graphite electrodes for EAF steelmaking plays a vital role in maintaining furnace efficiency and cost control. These electrodes are systematically evaluated and replaced based on consumption metrics and thermal performance data, ensuring minimal disruption to production schedules. Their compatibility with high-power transformer configurations supports consistent electrical feed and enhances furnace responsiveness. Operational teams coordinate electrode replacement protocols with on-site quality assurance testing and installation training programs to ensure safe handling and optimal performance. This approach facilitates continuous furnace operation while complying with internal maintenance and external regulatory standards.
What are the main differences between normal power, high power, and ultra-high power graphite electrodes?
We offer three grades of graphite electrodes: normal power for standard melting, high power for faster furnace response with increased current density, and ultra-high power optimized for demanding applications, delivering the highest current capacity and durability. Our ultra-high power electrodes are ideal for EAF steelmaking.
Can I customize the diameter or power grade of graphite electrodes to fit my specific furnace?
Yes, we provide customization options for diameter and power grade to meet unique furnace requirements. Our electrodes are available in multiple diameters from 300 mm to 700 mm, ensuring compatibility across applications. Contact us to specify your needs and obtain tailored ultra-high power graphite electrodes or other grades.
What installation support do you provide for graphite electrodes in furnace operations?
We assist clients with on-site installation demonstrations and operator training, ensuring correct handling and long service life of graphite electrodes. Our technical team supports proper matching with high-power transformers to optimize performance and safety in high-temperature furnace environments.
How do you ensure the quality and consistency of your graphite electrodes for industrial use?
We implement strict quality control throughout production, testing electrical conductivity, mechanical strength, and thermal stability. This process guarantees consistent performance and safety in demanding metallurgical applications. Our commitment supports reliable supply of ultra-high power graphite electrodes for EAF steelmaking and related industries.
