Working Principle: The valve disc (butterfly plate) rotates around the valve stem axis, and the fluid flow is controlled by the rotation angle. A 90° rotation represents full opening or full closing.
Application Range: Commonly used in large-diameter water supply and drainage pipelines, ventilation and air conditioning systems, water treatment projects, etc. It is suitable for low-pressure and large-flow scenarios.
Performance Characteristics:
- Simple structure, small volume, light weight, and low cost.
- Fast opening and closing speed with small operating torque.
- Generally average sealing performance; not suitable for high-pressure or high-viscosity media.

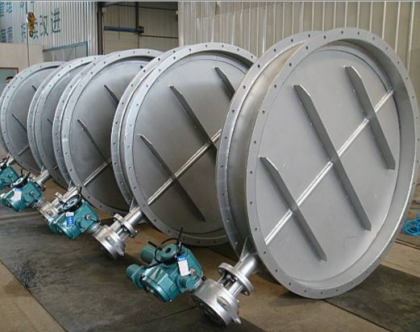

DescriptionTarget Application and User BaseOur large-diameter butterfly valves are engineered for pipeline designers, procurement managers and system integrators who require effective flow isolation and regulation in utility networks or process loops. As an experienced butterfly valve supplier, we supply valves that meet the demands of large-scale operations, frequent actuation, and challenging installation conditions. Users managing municipal water systems, HVAC chilled-water mainlines or chemical process feed circuits will appreciate the valve’s ability to deliver rapid operation, space-savings and service-friendly maintenance. This valve is the strategic choice when replacing oversized valves or upgrading to more responsive flow-control systems.Technical Details and Core SpecificationsThis butterfly valve features a one-piece ductile-iron body (or equivalent material per variant), a full-diameter elastomer-lined or metal-seat disc, and a stainless-steel shaft designed for high fatigue resistance. Typical size ranges available include DN300 and above (or equivalent large sizes), with pressure ratings up to PN10/PN16 (or Class 150) depending on option. The end-connection may be wafer or lug type compatible with ANSI/DIN standards. The design supports low-torque operation and minimal pressure drop, making flow control efficient even at high volumes. As your selected butterfly valve supplier, we guarantee that each valve undergoes shell and seat test, precision machining, and verified seat-leakage thresholds to ensure readiness for demanding use.Industry Use-Cases and Value PropositionIn municipal water distribution mains, large cooling-water loops, HVAC central plant piping and chemical feed lines, this butterfly valve from a credible butterfly valve supplier delivers significant operational benefits. Compared with traditional large valves, these butterfly valves provide quicker actuation, reduced weight and simplified installation while maintaining high flow capacity. Their suitability for both isolation and modulating duty promotes enhanced responsiveness and lower lifecycle costs. For large-scale systems, fewer shutdowns, less labour for servicing and streamlined spare-parts planning all contribute to improved system reliability and cost-control.AdvantagesOptimised Body and Disc Geometry for ReliabilityThe structural design of this butterfly valve emphasises minimal internal turbulence, balanced disc support and low-wear seat engagement. As a recognised butterfly valve supplier, we ensure that body and disc surfaces are precisely machined, shaft clearances are minimal and elastomer or metal seats maintain effective sealing across cycles. This results in enhanced durability, reduced maintenance frequency and sustained performance even under heavy-duty flow conditions. The logic: fewer moving parts + better material choices = less downtime and more predictable service life.Modular Seat and Actuator Interface for Service FlexibilityThese butterfly valves are designed with modular seat cartridges and standardised actuator mounting interfaces so that field service and upgrades are straightforward. Choosing a professional butterfly valve supplier means easier spare-parts logistics, less downtime for replacement and simplified system upgrades. Whether you switch from manual to pneumatic/ electric actuation later, the modular platform supports adaptability without full valve replacement, delivering user value in both CapEx and OpEx.Seamless Integration with System Architecture and Enhanced PerformanceAs systems evolve to demand better control, monitoring and automation, our butterfly valve supports manual, pneumatic or electric actuation, complies with standard flange patterns (ANSI/DIN), and fits within existing large-diameter lines with minimal piping modification. From the viewpoint of the butterfly valve supplier, providing such compatibility means fewer engineering hurdles, faster commissioning and less risk of integration errors. Performance benefits include low pressure drop in wide-open position, fast response to actuation commands and lower required torque which translates into smaller actuators and lower installation cost.Use ScenariosMunicipal Water Network Engineer Replacing Main Isolation ValvesA water-network engineer in charge of main supply lines sources our butterfly valves from a trusted butterfly valve supplier to replace outdated large gate or globe valves. The user values the compact size, faster actuation and lower maintenance overhead. The installation is completed with minimal disruption to supplies, responding rapidly to flow demands and providing easier future maintenance access thanks to modular design.HVAC Central Plant Maintenance Lead Upgrading Chilled-Water LoopsIn a large HVAC central plant, the maintenance lead selects our butterfly valve after consulting a professional butterfly valve supplier. The requirement: frequent cycling during seasonal transitions, minimal installation footprint and compatibility with electric actuators. The valve improves plant responsiveness and savings in both installation space and actuator size. Maintenance intervals lengthen and spare-parts logistics simplify.Process Plant Valve Engineer Specifying Automated Feed-Line ValveA valve engineer at a chemical-processing plant evaluates valve types and opts for our butterfly valve via the trusted butterfly valve supplier because of its metal-seat option, large-diameter capability and actuator readiness. The valve handles moderate pressure, is compatible with chilled or hot fluids and supports remote actuation. The engineer observes fewer unplanned shutdowns, streamlined spare-parts management and smoother integration with the SCADA system.About UsJiahe Wanfeng Ltd., headquartered in Kaifeng City, Henan Province, China, has specialised in precision valve manufacturing since 2005. Our core product lines include ball valves, butterfly valves, gate valves and custom-material valve solutions for water treatment, HVAC, process and utility systems. We serve OEMs, EPC contractors and maintenance operations worldwide with a consistent focus on technical accuracy, rigorous quality control and reliable delivery. As your selected butterfly valve supplier, we deliver end-to-end support: specification review, manufacturing traceability, installation guidance and lifecycle service. Submit your valve specification to us and place your order today!FAQ1.What installation method is required for this butterfly valve?It is normally installed between matching flanges (wafer or lug type) and must align with correct size, rating and the actuator mounting preparation; confirm piping dimensions and rotational clearance in advance.2.What warranty and support does the supplier provide for the valve?The standard warranty covers 12 months from commissioning; technical support includes documentation, training and spare-parts guidance; extended service agreements may be negotiated.3.Can this butterfly valve be automated or integrated with control systems?Yes; the valve supports manual, pneumatic or electric actuation and includes mounting configuration compatible with standard actuator interfaces upon request.4.What is the typical lead time when ordering from the butterfly valve supplier?For standard materials and sizes the lead time is approximately 4-6 weeks; for large diameter, custom materials or actuation options the schedule may be longer based on manufacturing and test requirements.5.Are spare parts and maintenance modules available for this valve?Yes; modular seat kits, bearings and shaft assemblies are available; the supplier provides spare-parts lists and maintenance instructions to support field servicing.
