Working Principle: The valve disc (butterfly plate) rotates around the valve stem axis, and the fluid flow is controlled by the rotation angle. A 90° rotation represents full opening or full closing.
Application Range: Commonly used in large-diameter water supply and drainage pipelines, ventilation and air conditioning systems, water treatment projects, etc. It is suitable for low-pressure and large-flow scenarios.
Performance Characteristics:
- Simple structure, small volume, light weight, and low cost.
- Fast opening and closing speed with small operating torque.
- Generally average sealing performance; not suitable for high-pressure or high-viscosity media.

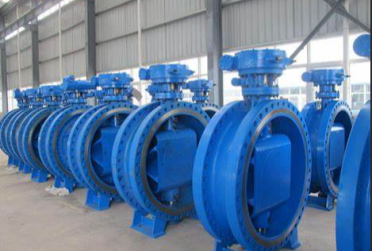

DescriptionTarget Application and Intended UsersOur butterfly valves are engineered for pipeline engineers, procurement managers and system integrators who require strong isolation and flow regulation in large-scale fluid systems. As a recognised butterfly valve supplier, we offer valves tailored for frequent cycling, wide diameters and minimal downtime. Users replacing older control valves, overseeing pump feed lines or bulk fluid transfer will appreciate this valve’s fast response, reduced installation footprint and simplified servicing when compared to traditional gate or globe valves.Key Technical Features and Core SpecificationsThis butterfly valve features an offset disc design (one or two offset variants) which minimises disc-seat friction, extending life and improving sealing capability. The body is crafted from ductile iron (or cast steel depending on version), disc is stainless steel or alloy plated, and shaft is stainless steel for corrosion resistance. Typical sizing covers large diameters (e.g., DN300 and up) and standard ratings (e.g., PN10/PN16 or equivalent). The connection type may be wafer or lug style matching ANSI or DIN flanges. As your chosen butterfly valve supplier, we ensure each valve operates with low torque, passes shell and seat tests and is ready for manual or actuator-driven control setups.Industry Usage and Application ValueIn municipal water mains, central HVAC chilled loops, chemical feed headers and large-diameter return pipelines, this butterfly valve from an experienced butterfly valve supplier delivers considerable value. The compact style and disc-rotation design reduce space and weight compared to gate or globe valves, while offering rapid opening/closing. The valve supports both shut-off and throttling duties in moderate-pressure systems and simplifies maintenance regimes. With fewer moving parts, easier actuator integration and standardised spares, the system owner wins in terms of reliability, lifecycle cost and operational simplicity.AdvantagesEnhanced Structural Design for DurabilityThe structural architecture of this butterfly valve emphasises minimal complexity: the offset disc, shaft and seat interface are designed to minimise wear and reduce torque. As a trusted butterfly valve supplier, we apply precision machining, reinforcement of critical load points and corrosion-resistant materials. This results in a valve that sustains frequent cycles, resists seat degradation and delivers long service intervals—reducing both maintenance downtime and spare-parts cost.Modular Components for Service FlexibilityOur butterfly valves incorporate modular seats, bearings and actuator mounting kits, enabling simplified aftermarket servicing. Selecting the right butterfly valve supplier means operators benefit from parts commonality, reduced downtime and straightforward upgrades from manual to automated operation. The modular approach also allows easier retrofit into existing lines since workshop staff can replace seat cartridges without removing the entire valve body.Superior System Compatibility and Performance UpgradeGiven evolving system demands—including automation, space constraints and efficiency targets—this butterfly valve from a professional butterfly valve supplier offers high compatibility with manual, pneumatic or electric actuation and standard flange patterns (ANSI, DIN). The performance improvements include lower pressure drop when wide open, faster actuation response and reduced required actuator size due to low torque design. These benefits translate into installation cost savings, improved system responsiveness and easier maintenance logistics.Use ScenariosMunicipal Pipeline Engineer Specifying Replacement ValvesA municipal pipeline engineer responsible for main supply line upgrades collaborates with a trusted butterfly valve supplier to select the correct butterfly valve to replace ageing gate valves. The engineer requires large-diameter compatibility, quick shut-off capability and minimal footprint in a tight underground vault. By selecting our valve, the installation time is reduced, system start-up quicker and future maintenance simplified thanks to modular service kits.HVAC Plant Maintenance Supervisor Selecting Control ValvesIn a large HVAC central plant, the maintenance supervisor needs valves in chilled-water mains that open/close seasonally and occasionally throttle flows. They turn to our butterfly valves, chosen via a professional butterfly valve supplier, because the valve offers low actuation torque, compact size and ready integration with electric actuator packages. The result: better responsiveness, less disruption during seasonal changes and lower maintenance burden for the team.Process Plant Valve Engineer Installing Automated Feed-Line DevicesA valve engineer in a chemical process plant seeks a reliable isolation valve for feed-line automation. After reviewing options from a leading butterfly valve supplier, they specify our butterfly valve due to its offset disc design, actuator-ready mounting and materials suited for mildly corrosive service. The engineer reports smoother integration with the PLC system, fewer unplanned shutdowns and streamlined spare-parts planning thanks to the modular aspect of the valve. About UsJiahe Wanfeng Ltd., located in Kaifeng City, Henan Province, China, has specialised in precision valve manufacturing since 2005. Our product range includes butterfly valves, ball valves, gate valves and custom-material solutions for pipeline, water supply, HVAC and process systems. We service OEMs, EPC contractors and maintenance operations worldwide, positioning ourselves as a dependable butterfly valve supplier committed to durability, technical accuracy and global delivery. Each unit is produced under strict quality control, with full traceability and performance testing. Submit your specification today and engage with us to begin your procurement process!FAQ1.What installation practices does the supplier recommend for this butterfly valve?Ensure the wafer or lug type valve is located between matching flanges, aligned correctly, and rotational clearance around the disc is sufficient; confirm the actuator mounting interface is prepared in advance.2.What warranty and technical support are provided by the supplier?We offer a standard twelve-month warranty from commissioning and provide ongoing technical support for spare-parts and service documentation. Extended service terms can be arranged.3.Can this butterfly valve be automated or integrated into control systems?Yes; the valve supports manual, pneumatic or electric actuation, includes modular mounting interfaces and the supplier provides torque data and actuator compatibility documentation.4.What is the typical lead time when ordering from the butterfly valve supplier?For standard sizes and materials, the lead time is approximately four to six weeks; custom materials, oversized diameters or special actuation may extend delivery time.5.Are spare parts and maintenance modules available for this valve?Yes; modular seat kits, bearing assemblies and actuator adapters are available. The supplier supplies a spare-parts list and recommended maintenance intervals for ease of field service.
